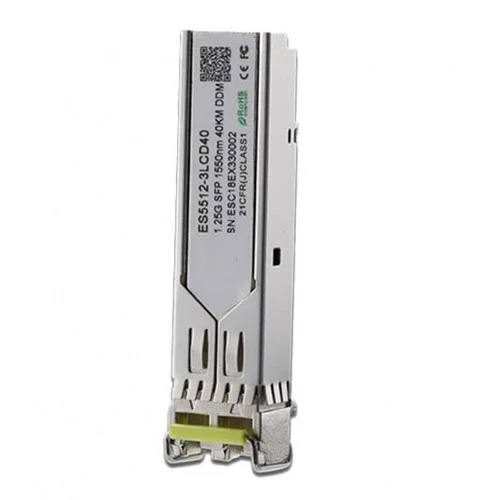

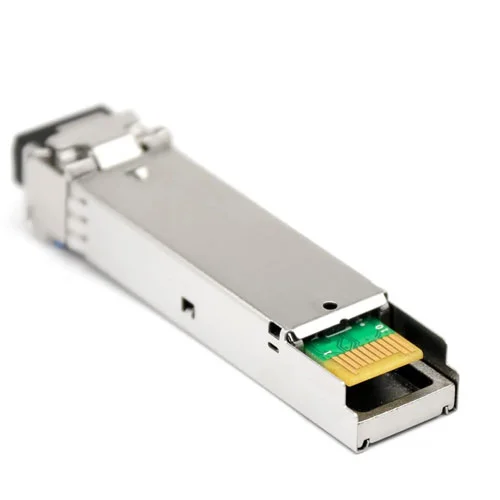

Hanutech 1.25G DDM Single Mode Duplex 1550nm SFP Transceiver Module 40KM, LC Optical Interface- 1 Year Warranty
Product description
Hanutech Transceiver is a high performance, cost effective module which have a duplex LC optics interface. Standard AC coupled CML for high speed signal and LVTTL control and monitor signals. The receiver section uses a PIN receiver and the transmitter uses a 1310 nm FP laser, up to 15dB link budge ensure this module 1000Base Ethernet 40km application.
1.25G SM Dual 40KM
- Data-rate of 1.25Gbps operation
- 1550nm DFB laser and PIN photo detector for 40KM transmission

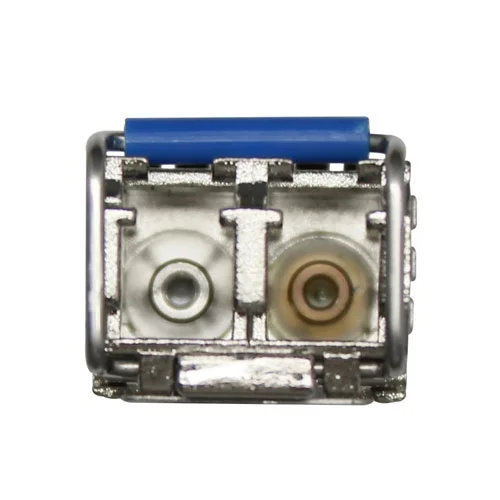

- Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
- +3.3V single power supply
- Operating case temperature: Standard : 0 to +70°C Extended : -20 to +85°C Industrial : -40 to +85℃
Related products
-
10G SMSF 40KM
- Data Rate: 10Gbps
- Wavelength: 1270/1330nm
- Data Transmission: 40KM SMSF
- Operating Temperature: 0 °C to +70 °C (Commercial)/-40 °C to +85 °C (Industrial)
- Complying with ROHS standard
-
EPON Module
- Model: EPON OLT PX20+++ 20km SFP module
- Wavelength: TX1490/RX1310
- 1.25g Uplink/Downlink
- 7.5dbm-9dbm
- Compatible With All Except Huawei/Zte/Alphion
-

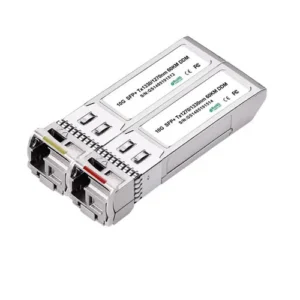

10G SMSF 60KM
- Data Link Up to 11.3 Gbps data rate
- Simplex LC receptacle optical interface compliant
- Single +3.3V power supply
- Operating temperature range: Commercial: -5°C~70°C, Industrial: -40°C~85°C
- Compatible With Cisco & Huawie Switches
-
SMSF 20KM 10G Module
- Compatible With Cisco & Huawei Switches
- Up to 10.7Gbps Data Links
- 1270/1330nm DFB LD Transmitter
- Applicable for 20kmSMF connection
- Complying with ROHS standard
